Terraform & Terragrunt with Atlantis: The Complete Guide

What is Atlantis?

Atlantis is an open-source automation tool designed to streamline Terraform workflows through pull request-based interactions. Rather than requiring developers to execute Terraform commands locally or through separate CI/CD interfaces, Atlantis brings plan and apply operations directly into version control, enabling teams to review, discuss, and approve infrastructure changes within familiar pull request interfaces.

Core Benefits

Enhanced Collaboration: Infrastructure changes are visible directly in pull requests, enabling focused team discussions about proposed modifications before they're deployed.

Centralized Execution: All Terraform operations run on a dedicated server rather than individual machines, eliminating "works on my machine" issues and ensuring consistency across your organization.

Improved Governance: Pull requests create a natural audit trail for all infrastructure changes, documenting who proposed what, when, and with what approval.

State Management: Atlantis implements project-level locking to prevent concurrent operations on the same infrastructure, complementing Terraform's backend locking mechanisms.

Productivity: Automation of plan generation and the ability to apply changes through simple PR comments accelerates deployment cycles while maintaining rigor.

Pros and Cons of Using Atlantis

Understanding the strengths and limitations of Atlantis helps teams make informed decisions about adoption and plan for operational gaps.

Pros

GitOps for Infrastructure: Atlantis deeply integrates with your version control system (GitHub, GitLab, Bitbucket, Azure DevOps), enabling teams to manage infrastructure changes using familiar pull request workflows with a clear audit trail.

Automation of plan and apply: Automatic plan generation on PR creation and one-command applies reduce manual effort and accelerate deployment cycles.

Consistency and Standardization: Terraform commands run in a consistent server environment, eliminating "works on my machine" issues and standardizing how changes are reviewed and implemented.

Improved Security: Developers may not need direct cloud provider credentials on their local machines, and changes are reviewed and explicitly approved before being applied.

State Locking: Atlantis automatically locks Terraform states during plan and apply operations, preventing concurrent modifications that could lead to state corruption.

Open Source: Free to use and customizable. Self-hosting gives organizations complete control over the Atlantis instance, its configuration, and credential storage.

Cons

Self-Hosting and Maintenance Overhead: Your team is responsible for deploying, maintaining, securing, and upgrading the Atlantis server, which requires ongoing operational effort.

Single Point of Failure: Unless configured for high availability (which adds complexity), the Atlantis server can become a single point of failure that stalls automated workflows.

Concurrency Limitations: By default, Atlantis processes operations sequentially for a given instance. High volumes of concurrent PRs across many teams may lead to queues and delays without scaling strategies such as multiple instances with sharding logic.

Limited Native Integrations Beyond VCS: Compared to commercial platforms (Terraform Cloud, Scalr, env0, Spacelift), Atlantis has fewer built-in integrations for advanced policy checking, cost estimation, or security scanning. These can be added with custom workflows but require more setup.

Basic UI/UX: Atlantis primarily operates via PR comments and has a basic web UI for viewing logs and locks. It lacks the dashboards and reporting features of commercial alternatives.

Workflow Rigidity: The core workflow is tied to pull requests. Complex scenarios not fitting this model may be harder to implement.

No Built-in Advanced RBAC: Role-based access control is primarily managed through VCS repository permissions and Atlantis's own configuration. More granular RBAC within Atlantis is limited.

Problems Atlantis Solves

Without a dedicated automation layer, Terraform teams encounter several challenges:

• Decentralized Execution: Running Terraform locally leads to environment drift and inconsistent results
• Manual Processes: Plans and applies require manual coordination and communication
• Limited Visibility: Tracking who did what and when becomes difficult without centralized logging
• State Conflicts: Concurrent operations without proper coordination can compromise state integrity
• Onboarding Friction: New team members must set up complete local Terraform environments to participate

Architecture and Core Concepts

Deployment Model

Atlantis operates as a self-hosted service that you deploy and manage on your infrastructure. This differs from managed solutions and means you retain control over the environment while assuming responsibility for operational maintenance.

Common deployment approaches:

• Docker containers on any container host
• Kubernetes using Helm charts for scalability
• Cloud VMs on AWS EC2, Azure VMs, or Google Compute Engine
• Binary deployment on dedicated servers

The service listens for webhook events from your version control system and responds to pull request activity and comment commands.

How Atlantis Works

The fundamental Atlantis workflow follows this pattern:

1. Developer Creates PR: Engineer pushes Terraform changes and opens a pull request
2. Webhook Notification: VCS sends webhook event to Atlantis server
3. Automatic Planning: Atlantis detects changed files and runs terraform plan
4. Result Posting: Plan output appears as a comment in the pull request
5. Review Phase: Team members review the proposed infrastructure changes
6. Apply via Comment: Authorized user comments atlantis apply to execute changes
7. Completion: Atlantis applies the plan and posts results
8. PR Merge: Team merges the PR, completing the cycle

Essential PR Commands

• atlantis plan [-d dir] [-w workspace] [-p project_name]: Manually trigger a plan
• atlantis apply [-d dir] [-w workspace] [-p project_name]: Apply a planned change
• atlantis unlock: Release a stuck lock
• atlantis help: Show available commands

Getting Started: Setup and Deployment

Prerequisites

Before deploying Atlantis, ensure you have:

Server Infrastructure: A dedicated server, VM, or container cluster with:

• 1-2 vCPUs minimum
• 2-8GB RAM depending on workload
• 5-50GB disk space for Git clones and plan files
• Public IP or domain name for webhook access

Git and Terraform:

• Git client installed and accessible
• Terraform installed (Atlantis can manage versions)
• Remote Terraform state backend (S3, Azure Blob, GCS, etc.)

Version Control System:

• Repository access configured
• GitHub, GitLab, Bitbucket, or Azure DevOps account
• Personal Access Token or GitHub App credentials

Cloud Provider Credentials:

• AWS credentials, Azure service principal, GCP service account, etc.
• IAM roles/permissions for infrastructure operations

Docker Deployment

The quickest way to get started is using Docker:

docker run --name atlantis -d -p 4141:4141 \
  -e ATLANTIS_ATLANTIS_URL="https://atlantis.example.com" \
  -e ATLANTIS_GH_USER="your-github-user" \
  -e ATLANTIS_GH_TOKEN="your-github-pat" \
  -e ATLANTIS_GH_WEBHOOK_SECRET="your-webhook-secret" \
  -e ATLANTIS_REPO_ALLOWLIST="github.com/your-org/*" \
  -v /path/to/atlantis-data:/atlantis-data \
  ghcr.io/runatlantis/atlantis:latest server

Kubernetes Deployment with Helm

For production Kubernetes environments:

helm repo add runatlantis https://runatlantis.io
helm install atlantis runatlantis/atlantis \
  --set atlantisURL=https://atlantis.example.com \
  --set github.user=your-github-user \
  --set github.token=your-github-token \
  --set github.webhook_secret=your-webhook-secret \
  --set repoAllowlist="github.com/your-org/*"

VCS Integration: GitHub Authentication

Atlantis requires GitHub credentials to interact with your repositories. You have two options:

Personal Access Token (simpler but less granular):

• Generate token with repo scope
• Less secure due to broad permissions
• Easier to set up initially

GitHub App (recommended for production):

• More granular permissions
• Better security posture
• Atlantis can guide setup via /github-app/setup endpoint

For the GitHub App approach:

1. Navigate to your Atlantis server's /github-app/setup endpoint
2. Follow the guided setup to create an app in your organization
3. Grant specific permissions (Contents, Pull Requests, Commit Statuses)
4. Atlantis will handle app registration and private key management

Webhook Configuration

After deploying Atlantis, configure webhooks in your version control system:

Webhook Settings:

• URL: https://your-atlantis-domain.com/events (note the /events suffix)
• Content Type: application/json
• Secret: The same value as ATLANTIS_GH_WEBHOOK_SECRET
• Events: Pull requests, Issue comments, Pushes, Pull request reviews

The /events suffix is critical—missing it is a common setup error that prevents Atlantis from receiving notifications.

Configuration Deep Dive

The atlantis.yaml File

Every Terraform repository using Atlantis should have an atlantis.yaml file at its root. This file tells Atlantis how to handle infrastructure projects in your repository.

Basic Structure

version: 3
automerge: false
parallel_plan: true
parallel_apply: true

projects:
  - name: my-app-staging
    dir: infra/staging
    workspace: staging
    terraform_version: v1.5.0
    autoplan:
      when_modified: ["**/*.tf", "**/*.tfvars", ".terraform.lock.hcl"]
      enabled: true
    apply_requirements: [approved]

Key Configuration Options

Projects Array: Defines Terraform projects Atlantis manages

• name: Unique identifier for the project
• dir: Directory path (relative to repo root)
• workspace: Terraform workspace to use
• terraform_version: Pin specific Terraform version
• autoplan: Configure automatic planning behavior
• apply_requirements: Conditions that must be met before applying
• execution_order_group: Numeric priority for execution order
• depends_on: List of projects this depends on

Autoplan Configuration: Controls when plans automatically trigger

• enabled: Whether autoplan is active
• when_modified: File patterns that trigger planning

Apply Requirements: Enforce approval conditions

• approved: PR must be approved by a reviewer
• mergeable: PR must be mergeable (no conflicts)
• undiverged: PR branch must be up-to-date with base branch

Repository Structure for Optimal Workflows

Monorepo Pattern

Useful when all infrastructure code lives in a single repository:

Configuration for monorepo structure:

version: 3
projects:
  - name: network-dev
    dir: environments/dev/network
  - name: compute-dev
    dir: environments/dev/compute
    depends_on: [network-dev]
  - name: network-prod
    dir: environments/prod/network
  - name: compute-prod
    dir: environments/prod/compute
    depends_on: [network-prod]

Multi-Repo Pattern

Separate repositories for different infrastructure components:

networking-repo/
├── atlantis.yaml
├── modules/
└── environments/

compute-repo/
├── atlantis.yaml
├── modules/
└── environments/

Optimizing when_modified Patterns

The when_modified setting determines which file changes trigger plans. Poor patterns cause unnecessary operations.

Inefficient Pattern (too broad):

autoplan:
  when_modified: ["**/*.tf"]  # Triggers for any .tf file anywhere

Optimized Pattern (targeted):

projects:
  - name: networking
    dir: networking
    autoplan:
      when_modified:
        - "networking/*.tf"
        - "networking/*.tfvars"
        - "modules/network/**/*.tf"

Remember that paths are relative to the project's dir, not the repository root.

Custom Workflows and Advanced Automation

Beyond Default Plan and Apply

While Atlantis includes default plan and apply workflows, custom workflows enable sophisticated automation patterns.

Defining Custom Workflows

version: 3
projects:
  - name: production
    dir: environments/production
    workflow: prod-workflow
    apply_requirements: [approved]

workflows:
  prod-workflow:
    plan:
      steps:
        - run: terraform fmt -check
        - run: tflint .
        - init
        - plan:
            extra_args: ["-var-file=prod.tfvars"]
    apply:
      steps:
        - apply
        - run: ./scripts/post-deploy-validation.sh

Advanced Workflow Patterns

Pre-Deployment Validation:

workflows:
  secure-workflow:
    plan:
      steps:
        - run: tfsec --no-color .
        - run: checkov -d . --quiet
        - init
        - plan

Cost Estimation Integration:

workflows:
  cost-aware:
    plan:
      steps:
        - init
        - plan
        - show
        - run: |
            infracost breakdown --path $SHOWFILE \
              --format json \
              --out-file /tmp/infracost.json

Multi-Module Orchestration with Environment Variables:

workflows:
  multi-env:
    plan:
      steps:
        - env:
            name: AWS_REGION
            value: us-east-1
        - env:
            name: TF_VAR_environment
            value: production
        - init
        - plan

Available Environment Variables in Workflows

• $PLANFILE: Path to generated plan file
• $WORKSPACE: Terraform workspace name
• $PROJECT_NAME: Project name from atlantis.yaml
• $DIR: Project directory
• $PULL_NUM: Pull request number
• $BASE_REPO_OWNER: Repository owner
• $BASE_REPO_NAME: Repository name

Security in Production

Server Security Fundamentals

Securing the Atlantis server is critical since it executes infrastructure changes with elevated permissions.

Network Security

Firewall Configuration:

# Allow webhook traffic only from VCS provider IPs
iptables -A INPUT -p tcp -s <GITHUB_IPS> --dport 4141 -j ACCEPT
# Deny all other incoming traffic to Atlantis port
iptables -A INPUT -p tcp --dport 4141 -j DROP

Best Practices:

• Place Atlantis behind a reverse proxy with TLS termination
• Restrict incoming traffic to VCS provider IP ranges
• Configure egress rules limiting outbound connectivity
• Use IP allowlisting for webhook sources

TLS/SSL Configuration

atlantis server \
  --ssl-cert-file=/path/to/cert.pem \
  --ssl-key-file=/path/to/key.pem \
  --atlantis-url="https://atlantis.example.com"

Requirements:

• Valid certificates from trusted CAs
• Strong TLS ciphers with old protocols disabled
• Automatic certificate renewal

OS-Level Hardening

# Create dedicated non-root user
sudo useradd -r -m -s /bin/false atlantis

# Set restrictive directory permissions
sudo mkdir -p /var/lib/atlantis
sudo chown atlantis:atlantis /var/lib/atlantis
sudo chmod 700 /var/lib/atlantis

Container Security

docker run --name atlantis \
  --user atlantis \
  --read-only \
  --cap-drop=ALL \
  --security-opt=no-new-privileges \
  --mount type=volume,source=atlantis-data,target=/var/lib/atlantis \
  -p 4141:4141 \
  ghcr.io/runatlantis/atlantis:latest server

Webhook Security

Strong Webhook Secrets

# Generate cryptographically secure webhook secret
webhook_secret=$(openssl rand -hex 32)

# Set in Atlantis configuration
export ATLANTIS_GH_WEBHOOK_SECRET="$webhook_secret"

Requirements:

• Minimum 24 characters with high entropy
• Stored securely in environment variables or secrets manager
• Rotated periodically
• Never committed to version control

IP Allowlisting

server {
    listen 443 ssl;
    server_name atlantis.example.com;

    # GitHub webhook IP ranges
    allow 192.30.252.0/22;
    allow 185.199.108.0/22;
    allow 140.82.112.0/20;

    deny all;

    location / {
        proxy_pass http://localhost:4141;
    }
}

Repository Allowlist

atlantis server \
  --repo-allowlist="github.com/yourorg/*" \
  --gh-webhook-secret="$WEBHOOK_SECRET"

Cloud Provider Credential Management

Least Privilege IAM Roles

resource "aws_iam_role" "atlantis" {
  name = "atlantis-terraform-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [{
      Action = "sts:AssumeRole"
      Effect = "Allow"
      Principal = {
        Service = "ec2.amazonaws.com"
      }
    }]
  })
}

resource "aws_iam_role_policy" "atlantis" {
  role = aws_iam_role.atlantis.name

  policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Effect = "Allow"
        Action = [
          "s3:GetObject",
          "s3:PutObject",
          "s3:ListBucket"
        ]
        Resource = [
          "arn:aws:s3:::${var.terraform_state_bucket}",
          "arn:aws:s3:::${var.terraform_state_bucket}/*"
        ]
      }
    ]
  })
}

Principles:

• Use IAM roles instead of static access keys
• Implement principle of least privilege
• Create separate roles for different environments
• Regularly audit permissions

OIDC Workload Identity

For Kubernetes deployments:

resource "aws_iam_openid_connect_provider" "atlantis" {
  url             = "https://your-atlantis-domain"
  client_id_list  = ["atlantis"]
  thumbprint_list = ["<certificate-thumbprint>"]
}

resource "aws_iam_role" "atlantis_oidc" {
  name = "atlantis-oidc-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [{
      Action = "sts:AssumeRoleWithWebIdentity"
      Effect = "Allow"
      Principal = {
        Federated = aws_iam_openid_connect_provider.atlantis.arn
      }
      Condition = {
        StringEquals = {
          "${aws_iam_openid_connect_provider.atlantis.url}:sub": "system:serviceaccount:atlantis:atlantis"
        }
      }
    }]
  })
}

Secret Management

Use external secret managers instead of hardcoding credentials:

provider "vault" {
  address = "https://vault.example.com"
}

data "vault_aws_access_credentials" "aws" {
  backend = "aws"
  role    = "atlantis"
}

provider "aws" {
  access_key = data.vault_aws_access_credentials.aws.access_key
  secret_key = data.vault_aws_access_credentials.aws.secret_key
  region     = var.aws_region
}

Repository-Level Security with atlantis.yaml

Server-Side Configuration

Use repos.yaml to enforce organization-wide policies:

repos:
  - id: /.*/  # Applies to all repositories
    allowed_overrides: [workflow]
    allow_custom_workflows: false
    apply_requirements: [approved, mergeable]
    pre_workflow_hooks:
      - run: terraform fmt -check
      - run: tflint

Security Controls:

• Restrict which configurations repositories can override
• Disable custom workflows for untrusted repos
• Enforce approval requirements
• Run validation steps before Terraform operations

API Authentication

# Enable basic authentication for web interface
atlantis server \
  --web-basic-auth=true \
  --web-username=admin \
  --web-password=secure-password

Deployment Behind a Reverse Proxy

server {
    listen 443 ssl;
    server_name atlantis.example.com;

    ssl_certificate /path/to/cert.pem;
    ssl_certificate_key /path/to/key.pem;

    # Security headers
    add_header Strict-Transport-Security "max-age=31536000; includeSubDomains" always;
    add_header X-Content-Type-Options "nosniff" always;
    add_header X-Frame-Options "DENY" always;
    add_header Content-Security-Policy "default-src 'self'" always;

    location / {
        proxy_pass http://localhost:4141;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

See "securing Terraform Atlantis in production" for deeper security configurations and advanced threat mitigation.

Terragrunt Integration

Terragrunt adds powerful DRY (Don't Repeat Yourself) capabilities to Terraform, and Atlantis integrates well with it for managing complex infrastructure-as-code. New to Terragrunt? Start with our beginner's guide to Terragrunt.

Why Combine Atlantis with Terragrunt

Enhanced Automation: PR-based workflows combined with Terragrunt's modular approach creates scalable infrastructure management

DRY Principles: Terragrunt's configuration inheritance prevents repetition across environments while Atlantis automates execution

Dependency Management: Terragrunt explicitly defines module relationships that Atlantis respects during planning and applying

Parallel Execution: Atlantis can execute Terragrunt run-all operations to manage multiple modules efficiently

Setup for Terragrunt Projects

Custom Docker Image

The default Atlantis image doesn't include Terragrunt, so create a custom image:

FROM ghcr.io/runatlantis/atlantis:latest

ARG TERRAGRUNT_VERSION=v0.55.0
RUN curl -Lo /usr/local/bin/terragrunt \
    "https://github.com/gruntwork-io/terragrunt/releases/download/${TERRAGRUNT_VERSION}/terragrunt_linux_amd64" && \
    chmod +x /usr/local/bin/terragrunt

Server Configuration

atlantis server \
  --repo-allowlist="github.com/your-org/*" \
  --atlantis-url="https://your-atlantis-server.com" \
  --gh-user="your-github-user" \
  --gh-token="your-github-token" \
  --gh-webhook-secret="your-webhook-secret" \
  --autoplan-file-list="**/*.tf,**/*.tfvars,**/terragrunt.hcl,**/.terraform.lock.hcl"

Project Structure

Optimal structure for Terragrunt with Atlantis:

.
├── terragrunt.hcl          # Root configuration
├── environments
│   ├── dev
│   │   ├── terragrunt.hcl
│   │   ├── us-east-1
│   │   │   ├── terragrunt.hcl
│   │   │   ├── vpc
│   │   │   │   └── terragrunt.hcl
│   │   │   ├── rds
│   │   │   │   └── terragrunt.hcl
│   │   │   └── eks
│   │   │       └── terragrunt.hcl
│   ├── staging
│   └── prod
└── modules
    ├── vpc
    ├── rds
    └── eks

This unit-per-statefile layout is the standard Terragrunt recommendation, and it shapes every platform decision downstream. One team running vanilla OpenTofu and considering Terragrunt asked us at Scalr, as their first adoption question, whether a layout like the one above would explode into hundreds of workspaces on a managed platform or whether one top-level workspace per environment could work instead. Their decision hinged on workspace-count architecture and on whether comment-driven applies worked on their VCS provider — "a huge plus over what we are doing today," as they put it. Before you commit to a structure, count the leaf directories: that number becomes your project count in Atlantis and your workspace count anywhere else.

atlantis.yaml for Terragrunt

Using terragrunt-atlantis-config

The terragrunt-atlantis-config tool automatically generates Atlantis configuration from Terragrunt dependencies:

terragrunt-atlantis-config generate --output atlantis.yaml \
  --autoplan --parallel --create-workspace --cascade-dependencies

This generates an atlantis.yaml that respects your Terragrunt dependency tree.

Manual Configuration

version: 3
projects:
  - name: dev_us_east_vpc
    dir: environments/dev/us-east-1/vpc
    workflow: terragrunt
    autoplan:
      enabled: true
      when_modified:
        - "*.hcl"
        - "*.tf*"
        - "../../../modules/**/*.tf*"
    workspace: dev_us_east_vpc

  - name: dev_us_east_rds
    dir: environments/dev/us-east-1/rds
    workflow: terragrunt
    depends_on:
      - dev_us_east_vpc
    workspace: dev_us_east_rds

workflows:
  terragrunt:
    plan:
      steps:
        - env:
            name: TERRAGRUNT_TFPATH
            command: 'echo "terraform${ATLANTIS_TERRAFORM_VERSION}"'
        - env:
            name: TF_IN_AUTOMATION
            value: 'true'
        - run: terragrunt plan -input=false -no-color -out=$PLANFILE
    apply:
      steps:
        - env:
            name: TERRAGRUNT_TFPATH
            command: 'echo "terraform${ATLANTIS_TERRAFORM_VERSION}"'
        - run: terragrunt apply -input=false $PLANFILE

Managing Dependencies

Handling Mock Outputs

When dependencies haven't been applied yet, use mock outputs:

dependency "vpc" {
  config_path = "../vpc"

  mock_outputs = {
    vpc_id = "mock-vpc-id"
  }
  mock_outputs_allowed_terraform_commands = ["plan", "validate"]
}

Using run-all for Multi-Module Operations

workflows:
  terragrunt-run-all:
    plan:
      steps:
        - run: cd $DIR && terragrunt run-all plan -out atlantis.tfplan
    apply:
      steps:
        - run: cd $DIR && terragrunt run-all apply atlantis.tfplan

A warning if you ever plan to move off self-hosted automation: run-all semantics become the hard constraint. One enterprise migrating a heavily run-all-dependent Terragrunt codebase off an in-house PR-automation setup hit the trade-off directly in their proof of concept. Option one: keep run-all semantics by disabling the managed backend, losing drift detection in the process. Option two: split every Terragrunt unit into its own workspace and absorb the sprawl — which produced scalability problems even at their small POC size. They landed on a refactor rather than a rejection, but the refactor was real work. If your dependency graph only resolves through run-all, budget for restructuring before any platform migration, managed or otherwise.

Dependency Cascade

Configure execution order in atlantis.yaml:

version: 3
parallel_plan: true
parallel_apply: true
projects:
  - name: network
    dir: infrastructure/network
    execution_order_group: 1

  - name: security
    dir: infrastructure/security
    execution_order_group: 2
    depends_on:
      - network

  - name: database
    dir: infrastructure/database
    execution_order_group: 3
    depends_on:
      - security

See the linked spoke article "The Ultimate Guide to Terraform Atlantis with Terragrunt" for comprehensive Terragrunt integration patterns and advanced configurations.

Cost Optimization

Atlantis enables organizations to implement rigorous cost control by making infrastructure changes visible and reviewable before deployment.

Preventing Unnecessary Provisioning

Visibility as a Control Mechanism: Every proposed change appears in the PR with a complete terraform plan output. This visibility acts as a powerful checkpoint for preventing accidental resource deployment.

Mandatory Review: Infrastructure changes require team review before implementation. This human checkpoint catches unjustified resource creation that could lead to unnecessary costs.

Version Control Audit Trail: Git history combined with Atlantis PR logs creates a permanent record of infrastructure modifications, enabling cost tracking and allocation.

Cost Awareness in the PR

Infracost Integration

Integrate cost estimation into your PR workflow:

workflows:
  terraform-infracost:
    plan:
      steps:
        - init
        - plan
        - show
        - run: |
            infracost breakdown --path $SHOWFILE \
              --format json \
              --out-file /tmp/infracost-$PULL_NUM.json

repos:
  - id: /.*/
    workflow: terraform-infracost
    post_workflow_hooks:
      - run: |
          infracost comment github \
            --path /tmp/infracost-*.json \
            --repo $BASE_REPO_OWNER/$BASE_REPO_NAME \
            --pull-request $PULL_NUM \
            --github-token $GITHUB_TOKEN \
            --behavior update
        commands: plan

This posts estimated cost impact directly in the PR, enabling data-driven decisions before infrastructure is deployed.

Cost-Saving Strategies with Atlantis

Identifying and Removing Unused Resources

The PR workflow ensures resource deletion is as deliberate as creation:

1. Developer creates PR removing Terraform code
2. terraform plan shows exactly what will be destroyed
3. Team verifies these resources are no longer needed
4. Approval and atlantis apply executes the removal

This prevents orphaned resources that drain budgets.

Rightsizing Infrastructure

Use Atlantis to systematize instance type and capacity adjustments:

# Example: Resize EC2 instance
resource "aws_instance" "app_server" {
  instance_type = var.instance_type  # Change from t3.large to t3.medium
  # ... other configuration
}

With Infracost integrated, the PR immediately shows cost savings, providing confidence for the change.

Non-Production Environment Scheduling

Automate non-production environment lifecycles using Atlantis APIs:

# Shutdown non-prod at end of day
curl -X POST https://atlantis.example.com/apply \
  -H "Authorization: Bearer $ATLANTIS_TOKEN" \
  -d '{
    "workspace": "dev",
    "project": "infrastructure",
    "pull_request_number": 12345,
    "comment": "atlantis apply"
  }'

Terraform code defines "shutdown" states (ASG scaling to zero, database pauses), which external schedulers trigger to save on non-production costs.

Resource Tagging and Cost Allocation

Consistent Tagging: Tags are critical for cloud billing allocation and cost tracking.

provider "aws" {
  region = "us-east-1"
  default_tags {
    tags = {
      Environment = var.environment
      Project     = "phoenix"
      CostCenter  = "engineering-123"
      ManagedBy   = "Terraform-Atlantis"
      CreatedDate = timestamp()
    }
  }
}

Audit Trail Integration: Correlate Git commit history with Atlantis PR logs to understand cost drivers and allocation.

OpenTofu Support

As organizations explore vendor-neutral infrastructure automation, OpenTofu (the open-source Terraform fork) has emerged as an important alternative. Atlantis fully supports OpenTofu workloads.

Atlantis and OpenTofu: Vendor Neutrality

Atlantis was designed from inception to be VCS-agnostic and now extends that philosophy to IaC tools. The project supports both Terraform and OpenTofu, allowing organizations to choose their preferred tool without switching automation platforms.

Using OpenTofu with Atlantis

Project-Level Configuration

Specify OpenTofu for specific projects in atlantis.yaml:

projects:
  - name: project-terraform
    dir: project-terraform
    terraform_version: 1.5.0

  - name: project-opentofu
    dir: project-opentofu
    terraform_distribution: opentofu
    terraform_version: 1.6.0

Server Configuration

Set default distribution via server flags:

atlantis server \
  --terraform-distribution=opentofu \
  --default-tf-version=1.6.0

Benefits of OpenTofu with Atlantis

Vendor Independence: Use OpenTofu without changing your infrastructure automation tooling

Flexibility: Mix Terraform and OpenTofu projects in the same repository

Future-Proof: OpenTofu's community-driven development ensures long-term support

Cost Control: No licensing fees or commercial vendor lock-in

Considerations for OpenTofu Migration

Provider Ecosystem: Ensure providers you use have OpenTofu versions available

State Compatibility: Terraform and OpenTofu can share state files, enabling gradual migration

Testing: Thoroughly test OpenTofu plans before migrating production workloads

Alternatives and Comparisons

Atlantis vs. GitHub Actions

GitHub Actions offers a general-purpose CI/CD platform that can run Terraform, while Atlantis is purpose-built for infrastructure automation. Understanding the tradeoffs helps inform your choice.

Choose Atlantis if: Your team prioritizes a streamlined Terraform workflow, you want centralized execution, or you value native PR integration.

Choose GitHub Actions if: You need multi-purpose CI/CD beyond infrastructure, prefer managed services, or use GitHub exclusively.

Other Alternatives

The broader ecosystem includes several commercial and open-source platforms:

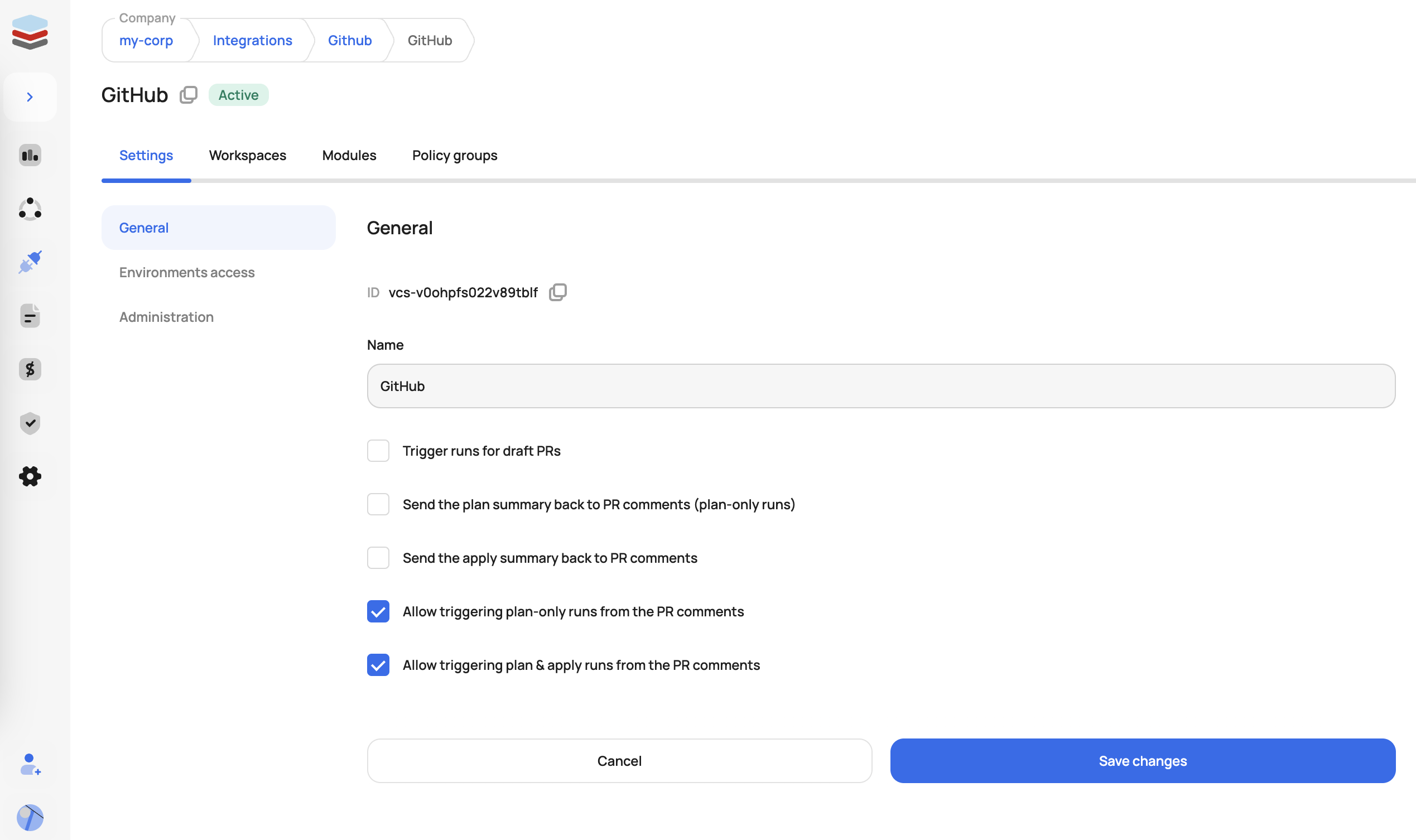

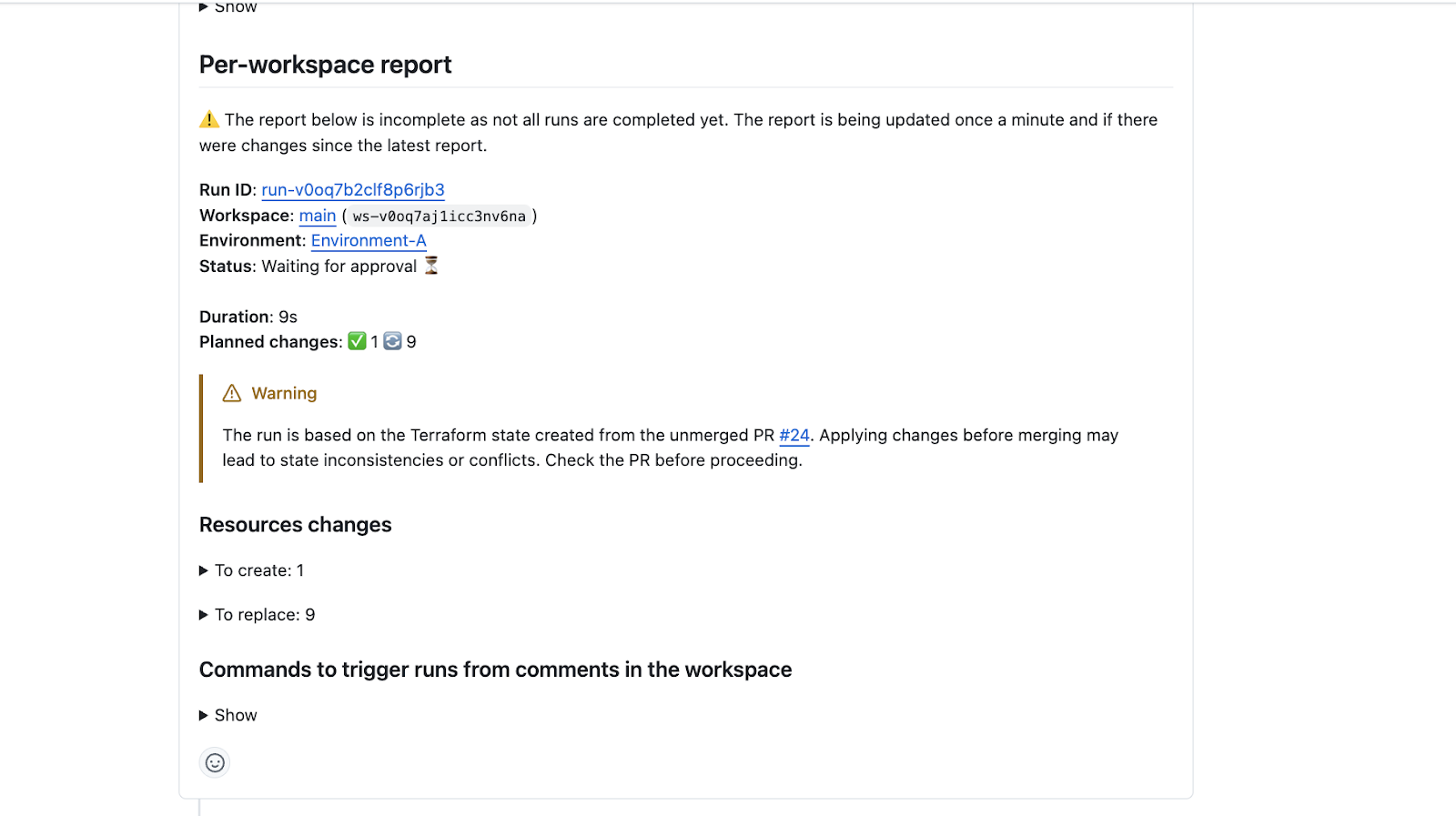

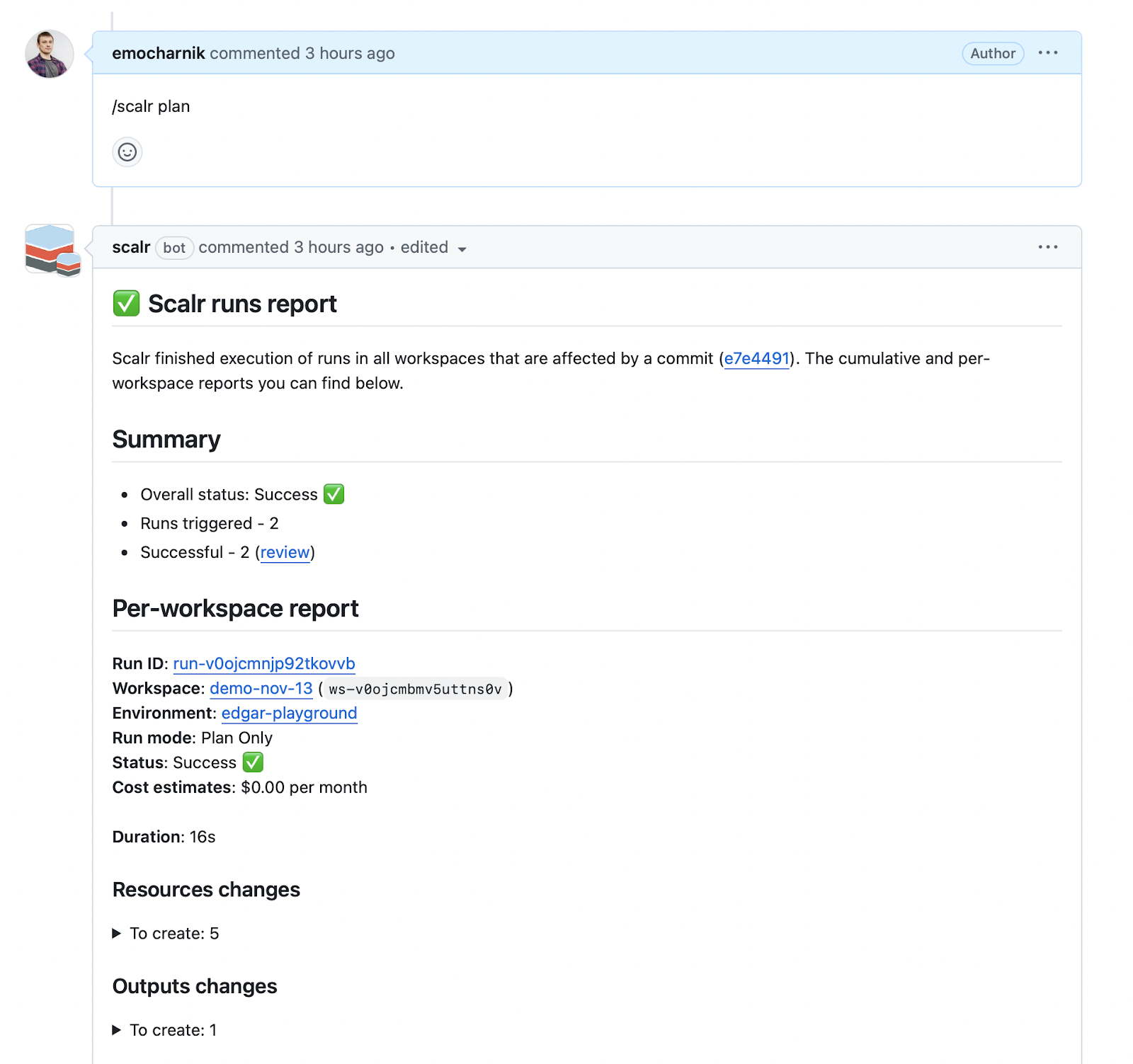

• Scalr: A managed IaC platform providing infrastructure automation, policy enforcement, and team governance with integrated cost estimation and role-based access control
• Terraform Cloud/Enterprise: HashiCorp's managed solution with workspace isolation, policy as code, and VCS integration
• Spacelift: A modern IaC management platform with sophisticated policy enforcement and GitOps workflows
• env0: A collaborative IaC platform focusing on governance, cost management, and compliance

Each alternative approaches different organizational needs around scale, governance, support requirements, and cost structure. The pricing models split along a clear line: some alternatives use concurrency-based pricing — fixed parallel run slots that you pay for whether or not engineers are running plans — while Scalr uses usage-based pricing that charges only for runs that actually executed. The trade-off matters most during incidents and release peaks, when concurrency caps throttle the parallel fixes you most need to ship.

Best Practices

1. Version Control Your Atlantis Configuration

Store atlantis.yaml in version control to track configuration changes through the same audit process as infrastructure code:

version: 3
automerge: false
parallel_plan: true
parallel_apply: true
projects:
  - name: networking
    dir: infrastructure/networking
    autoplan:
      when_modified: ["*.tf", "*.tfvars", "../modules/network/**/*.tf"]
    terraform_version: 1.5.0
    execution_order_group: 1

  - name: database
    dir: infrastructure/database
    autoplan:
      when_modified: ["*.tf", "*.tfvars", "../modules/database/**/*.tf"]
    terraform_version: 1.5.0
    execution_order_group: 2
    depends_on:
      - networking

Benefits include configuration review through PRs, rollback capability, and historical audit trail.

2. Implement Reliable State Locking and Backend Configuration

Always use remote state backends with locking mechanisms:

terraform {
  backend "s3" {
    bucket         = "terraform-state-bucket"
    key            = "path/to/my/key"
    region         = "us-east-1"
    encrypt        = true
    dynamodb_table = "terraform-lock-table"
  }
}

For complex backends, use custom workflows:

workflows:
  custom_backend:
    plan:
      steps:
      - run: rm -rf .terraform
      - init:
          extra_args: [
            "-backend-config=bucket=terraform-state-bucket",
            "-backend-config=key=${WORKSPACE}/state.tfstate",
            "-backend-config=dynamodb_table=terraform-lock-table"
          ]
      - plan

3. Use Dedicated Least-Privilege IAM Roles

Create specific IAM roles for Atlantis with minimal necessary permissions:

resource "aws_iam_role" "atlantis" {
  name = "atlantis-terraform-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [{
      Action = "sts:AssumeRole"
      Effect = "Allow"
      Principal = {
        Service = "ec2.amazonaws.com"
      }
    }]
  })
}

# Attach only required specific policies, not AdminAccess
resource "aws_iam_role_policy_attachment" "atlantis" {
  role       = aws_iam_role.atlantis.name
  policy_arn = "arn:aws:iam::aws:policy/specific-policy"
}

4. Keep Atlantis and Terraform Versions Updated

Maintain a version upgrade strategy:

projects:
  - name: legacy
    dir: legacy
    terraform_version: 0.14.11  # Pinned for backward compatibility

  - name: modern
    dir: modern
    terraform_version: 1.5.0    # Current version

Upgrade Strategy:

1. Test new versions in non-production environments
2. Document compatibility matrix of tested versions
3. Schedule upgrades during low-activity periods
4. Prepare rollback plans for each upgrade
5. Communicate changes to all team members

5. Structure Repositories for Efficient Planning

Organize code to reduce unnecessary plans and conflicts:

terraform-repo/
├── atlantis.yaml
├── modules/
│   ├── networking/
│   ├── compute/
│   └── storage/
├── environments/
│   ├── dev/
│   │   ├── network
│   │   ├── compute
│   │   └── database
│   ├── staging/
│   └── production/
└── README.md

Benefits: Reduced plan frequency, clearer responsibility boundaries, easier dependency management.

6. Optimize when_modified Patterns

Use targeted patterns to trigger plans only when relevant files change:

projects:
  - name: networking
    dir: networking
    autoplan:
      when_modified:
        - "networking/*.tf"
        - "networking/*.tfvars"
        - "modules/network/**/*.tf"  # Include related modules

Test patterns with sample PRs to verify correctness.

7. Implement Pre-Plan Validation and Security Scanning

Integrate validation before Terraform operations:

workflows:
  validate-and-plan:
    plan:
      steps:
        - run: terraform fmt -check
        - run: terraform validate
        - run: tfsec --no-color .
        - run: checkov -d . --quiet
        - init
        - plan

Recommended tools:

• terraform fmt and terraform validate: Built-in syntax checks
• tflint: Extended linting
• tfsec: Security vulnerability scanning
• checkov: Policy-based security scanning
• conftest/OPA: Custom policy enforcement
• terrascan: Compliance and security violation scanner

For organization-wide scanning, use the server-side repos.yaml:

repos:
  - id: /.*/
    pre_workflow_hooks:
      - run: terraform fmt -check
      - run: tflint
      - run: tfsec . --no-color

Integrate with policy-as-code tools like OPA/Conftest for custom policy enforcement. Example OPA policy (save as policy/terraform.rego):

package terraform

deny[msg] {
  input.resource.aws_s3_bucket[name].acl == "public-read"
  msg = sprintf("S3 bucket '%v' is publicly readable", [name])
}

deny[msg] {
  input.resource.aws_security_group_rule[name].cidr_blocks[_] == "0.0.0.0/0"
  input.resource.aws_security_group_rule[name].type == "ingress"
  port = input.resource.aws_security_group_rule[name].to_port
  msg = sprintf("Security group rule '%v' allows ingress from internet to port %v", [name, port])
}

8. Monitor Atlantis Server Health and Logs

Implement comprehensive monitoring:

atlantis server --metrics-prometheus-endpoint="/metrics"

Key Metrics:

• atlantis_project_plan_execution_success/error: Plan success/failure
• atlantis_project_apply_execution_success/error: Apply success/failure
• atlantis_project_plan/apply_execution_time: Execution duration

Alerting:

• High error rates
• Unusually long execution times
• Server resource constraints
• Lock contention

For Kubernetes deployments, configure health probes:

livenessProbe:
  httpGet:
    path: /healthz
    port: 4141
  initialDelaySeconds: 30
  periodSeconds: 30
readinessProbe:
  httpGet:
    path: /healthz
    port: 4141
  initialDelaySeconds: 30
  periodSeconds: 30

Grafana Dashboard Recommendations: Visualize command execution success/failure rates, execution times, project plan/apply success rates, lock statistics, and server resource utilization.

Centralized Log Forwarding: Forward Atlantis logs to a centralized system (ELK, CloudWatch, etc.) for analysis and retention:

# Filebeat configuration example
filebeat.inputs:
- type: log
  paths:
    - /var/log/atlantis/atlantis.log
output.elasticsearch:
  hosts: ["elasticsearch:9200"]

9. Secure Webhooks and Atlantis Endpoints

Use strong webhook secrets and HTTPS:

atlantis server \
  --ssl-cert-file=/path/to/cert.pem \
  --ssl-key-file=/path/to/key.pem \
  --gh-webhook-secret="$(openssl rand -hex 32)"

Deploy behind a reverse proxy with additional security headers and IP allowlisting.

10. Train Teams and Establish Clear Workflows

Successful adoption requires team alignment:

Documentation:

• Basic Atlantis commands and workflow
• Repository-specific configurations
• Troubleshooting guides
• Project-specific procedures

Training:

• Hands-on workshops with real examples
• Role-specific training (developer vs. approver)
• Record sessions for future reference
• Assign Atlantis champions to assist teams

Rollout Strategy:

1. Pilot with small, low-risk project
2. Gradually expand to more projects
3. Make Atlantis the standard workflow
4. Continuously refine based on team feedback

11. Use Execution Order Groups and Dependencies

For complex infrastructures, properly configure execution order:

version: 3
parallel_plan: true
parallel_apply: true
projects:
  - name: network
    dir: infrastructure/network
    execution_order_group: 1

  - name: security
    dir: infrastructure/security
    execution_order_group: 2
    depends_on:
      - network

  - name: database
    dir: infrastructure/database
    execution_order_group: 3
    depends_on:
      - security

  - name: application
    dir: infrastructure/application
    execution_order_group: 4
    depends_on:
      - database

This ensures resources are created in correct sequence while maximizing parallelism where dependencies allow.

Troubleshooting Common Issues

Problem 1: Credential Misconfigurations

Symptoms: AccessDenied, NoCredentialProviders, or VCS authentication errors

Common Causes:

• Incorrect IAM roles or permissions
• Missing or incorrect environment variables
• Expired or insufficiently scoped VCS tokens
• Misconfigured assume_role policies

Diagnosis:

# Check Atlantis logs with debug level
docker logs atlantis --tail 100

# Verify credentials in the container
docker exec atlantis aws sts get-caller-identity
docker exec atlantis env | grep AWS

Resolution:

• Verify IAM permissions using AWS Policy Simulator
• Ensure environment variables are exported correctly
• Regenerate VCS tokens with appropriate scopes
• Use least-privilege IAM roles instead of broad access
• Prefer cloud-native mechanisms like instance profiles

Prevention: Use centralized secret management (Vault, AWS Secrets Manager) and rotate credentials regularly.

Problem 2: Webhook Delivery Failures

Symptoms: Atlantis doesn't comment on PRs or respond to commands

Common Causes:

• Incorrect webhook URL (missing /events suffix is common)
• Mismatched webhook secrets
• Firewall blocking VCS IPs
• Incorrect event subscriptions

Diagnosis: Check VCS webhook delivery logs first. Then verify:

# Test webhook connectivity
curl -X POST https://atlantis.yourcompany.com/events \
     -H "Content-Type: application/json" \
     -H "X-GitHub-Event: ping" \
     -d '{"zen": "test"}' -v

# Check Atlantis server logs
docker logs atlantis --grep "webhook"

Resolution:

• Verify webhook URL ends with /events
• Ensure webhook secret matches ATLANTIS_GH_WEBHOOK_SECRET
• Configure correct event subscriptions (Pull requests, Issue comments)
• Allow VCS provider IP ranges through firewall
• Fix any TLS/SSL misconfigurations

Problem 3: Plan/Apply Lock Contention

Symptoms: "Project locked by PR #XYZ" message, operations blocked

Common Causes:

• Legitimate concurrent operations on same project
• Stuck plans/applies not releasing locks
• Long-running Terraform operations
• Overly broad project definitions

Diagnosis:

• Check Atlantis PR comments for lock information
• Use Atlantis UI to view active locks

Resolution:

# For stale locks, manually unlock via PR comment
atlantis unlock

# For performance issues, consider running Terraform more efficiently
# Refine atlantis.yaml to split broad projects into more granular ones

Problem 4: Plan Inconsistencies

Symptoms: Atlantis plan differs from local plan, unexpected resource changes

Common Causes:

• Terraform version mismatch
• Provider version differences
• Inconsistent .terraform.lock.hcl files
• Different environment variables
• Backend configuration discrepancies

Diagnosis:

# Check Terraform version in Atlantis
atlantis version -p <project_name>

# Compare lock files
diff local/.terraform.lock.hcl remote/.terraform.lock.hcl

# Verify environment variables
docker exec atlantis env | grep TF_VAR

Resolution:

• Pin Terraform versions in atlantis.yaml
• Always commit .terraform.lock.hcl to version control
• Standardize environment variable injection
• Ensure backend configuration consistency

Problem 5: atlantis.yaml Syntax Errors

Symptoms: Autoplan failures, wrong workflow execution, project not found errors

Common Causes:

• YAML syntax errors (indentation, colons)
• Incorrect when_modified patterns
• Misconfigured custom workflows
• Server-side restrictions

Diagnosis:

# Validate YAML syntax locally
yamllint atlantis.yaml

# Check server logs with debug level
docker logs atlantis --tail 200 | grep -i error

Resolution:

• Validate YAML syntax before committing
• Remember that when_modified paths are relative to project dir
• Test patterns with sample PRs
• Verify server-side repos.yaml allows desired overrides

Problem 6: Performance Bottlenecks

Symptoms: Slow plan/apply operations, high server CPU/memory, lock contention

Common Causes:

• Large Terraform state files
• Complex configurations with many modules
• Insufficient server resources
• Suboptimal parallel pool size
• Slow disk I/O

Diagnosis:

# Monitor server resources
docker stats atlantis

# Check Terraform state size
ls -lh terraform.tfstate

# Enable Atlantis profiling
curl http://localhost:4141/debug/pprof/

Resolution:

• Split large Terraform projects into smaller ones
• Increase server CPU and RAM
• Tune --parallel-pool-size based on capacity
• Use SSD storage for --data-dir
• Enable Terraform plugin cache

Problem 7: Security Oversights

Symptoms: Unauthenticated UI, HTTP webhooks, overly broad permissions

Diagnosis: Security audit covering:

• Atlantis server configuration flags
• VCS webhook settings
• IAM permissions
• Secret management practices
• Custom workflow controls

Resolution:

• Enable UI authentication: --web-basic-auth=true
• Enforce HTTPS with valid certificates
• Use IP allowlisting for webhooks
• Implement least-privilege IAM
• Secure secrets with external managers
• Disable or restrict custom workflows

Problem 8: Stale Plans and Diverged Branches

Symptoms: Apply fails due to state drift, undiverged requirement blocks apply

Causes:

• Base branch updated after plan generation
• PR behind base branch
• Delayed PR merging

Resolution:

# Configure merge checkout strategy with undiverged requirement
apply_requirements: [approved, undiverged]

Use branch protection rules requiring branches to be up-to-date, and implement automatic PR updates with external tools.

See the linked spoke article "Troubleshooting Common Terraform Atlantis Issues" for more detailed diagnostic procedures and resolution steps.

The Atlantis Workflow in Scalr

For teams that want the Atlantis-style PR comment workflow without the self-hosting burden, Scalr provides a managed alternative — priced per run, with no per-user fees — that reproduces core Atlantis patterns with additional governance features.

1. Enable PR Comment Features for Your VCS Provider

In addition to existing VCS features such as "Trigger runs for draft pull requests" and "Send the plan summary back to pull request comments", Scalr offers "Allow triggering plan-only runs from the PR comments" and "Allow triggering apply runs from the PR comments". Once admins enable these, users can trigger runs directly from PR comments.

Connect the VCS you want to use for your Atlantis workflow

2. Execute a Run From a Pull Request

Once VCS admins enable end-users to trigger plans and applies from the PR, users can add the following comments to trigger runs in Scalr:

• /scalr plan - triggers plan-only Terraform runs in all affected workspaces with VCS-driven dry runs enabled
• /scalr plan -force - triggers plan-only runs, ignoring the workspace dry runs setting
• /scalr apply - triggers apply Terraform runs in all workspaces affected by the PR
• /scalr apply -workspace-id=ws-12345678 - limits apply to a specific workspace
• /scalr approve - approves a Terraform run waiting on approval before apply

The breadth of this vocabulary matters more than it looks. One customer coming from a comment-driven workflow asked for /confirm-run and /cancel-run equivalents because, when a run hit an apply-approval gate, the PR comment read "waiting for approval" — but the admins who could approve it had to leave the PR and open the platform UI to do so. They flagged the security implication themselves: any comment-driven approval must verify that the commenter is actually authorized to approve the run, not merely that they can comment on the PR. Atlantis trains teams to expect the entire run lifecycle to be drivable from comments, and that expectation follows them to whatever platform they evaluate next.

3. Output and Feedback

Once the plan is completed, the result (success/failure, resource changes, etc.) is automatically posted as a comment in the pull request thread, keeping your code review and infrastructure workflows fully integrated.

Audit what that comment actually contains before you choose a platform. As of June 2026, the most pointed feedback we've seen on this came from a platform engineer migrating off Atlantis who sent side-by-side screenshots of GitLab MR comments from a competing TACO platform: roughly 90% of each comment was run metadata — run ID, workspace, environment, status — with the plan diff buried underneath. Atlantis conditions teams to expect terse, diff-first rendering with the plan output front and center. When you evaluate a managed alternative, read an actual sample comment and check what it leads with, rather than only confirming that one appears.

You can now use comments to trigger Terraform / OpenTofu plan and apply

4. Control Runs Through OPA (Optional)

Want to limit which Scalr environments can have runs executed from PR comments? Scalr's integration with Open Policy Agent (OPA) can prevent various run sources, including PR comments. An OPA policy check can deny any run with the source comment-github or deny any run that is not from that source. A common use case is allowing PR-driven runs from lab and development environments but not production.

5. Additional Scalr Features for PR Workflows

Avoid State Updates by Unmerged PRs: Scalr displays warnings when changes are attempted from branches with unmerged pull requests and automatically prevents auto-apply operations when the state-generating branch differs from your run's configuration branch.

Prevent Apply from a Non-Mergeable PR: Using the apply-before-merge workflow, the /scalr apply command can be restricted to only execute after a PR is approved and passes branch protection checks, enforced through the merge_error attribute in the run input.

This is the migration question Atlantis teams ask most often. One team moving off Atlantis wanted to replicate the mergeable apply requirement exactly — block apply unless the PR is approved and branch protection passes — and the answer was an explicit OPA policy inspecting that merge_error attribute. Atlantis bakes the gate into a single apply_requirements keyword; on a managed platform it's a policy you write. Parity also varies by VCS provider: an infrastructure team on GitLab found that the documented OPA example covered only GitHub and Azure DevOps, and offered to pass GitLab API credentials into OPA to implement the check themselves. If your Atlantis setup leans on apply_requirements: [approved, mergeable], verify each gate exists for your specific VCS before you migrate.

Automatic Base Branch Merge Before Run Execution: VCS-driven workspaces can automatically merge the base branch into the head branch before triggering a run, ensuring runs execute against the latest code and reducing false-positive results.

Conclusion

Terraform Atlantis transforms infrastructure automation by embedding Terraform operations directly into pull request workflows. Its GitOps approach to infrastructure enhances collaboration, governance, and auditability while providing teams with centralized control over infrastructure changes.

The combination of Atlantis with Terragrunt, OpenTofu support, cost optimization integrations, and strong security controls makes it a powerful choice for organizations seeking to scale their infrastructure-as-code practices. When paired with proper team training, documented workflows, and monitoring practices, Atlantis enables teams to manage complex infrastructure reliably and efficiently.

However, managing Atlantis at scale requires attention to operational details—credential management, webhook configuration, version management, and performance optimization. Teams should carefully consider their organizational capacity for managing these operational aspects.

For organizations prioritizing operational simplicity, integrated governance features, or enterprise support, platforms like Scalr offer managed alternatives that abstract away much of Atlantis's operational burden while providing similar workflow capabilities, policy enforcement, and team collaboration features. If you're weighing Atlantis against the managed platforms, our comparison of Terraform Cloud alternatives covers how Atlantis, Scalr, Spacelift, and env0 differ on pricing, policy enforcement, and migration effort.

Whether you choose Atlantis or explore managed alternatives, the key is establishing GitOps practices that bring infrastructure changes through the same rigorous review and approval processes as application code—ensuring consistency, auditability, and reliability across your infrastructure ecosystem.

Additional Resources

• Troubleshooting Common Terraform Atlantis Issues
• Terraform Atlantis vs. GitHub Actions: Comprehensive IaC Automation Comparison
• Securing Atlantis
• Selecting a Terraform Cloud Alternative: Scalr, Spacelift, env0, and Atlantis Compared

External Resources:

• Atlantis GitHub Repository
• Atlantis Official Documentation
• Terragrunt Documentation
• OpenTofu Project
• Infracost Documentation

This pillar article consolidates comprehensive knowledge about Terraform Atlantis, synthesizing multiple focused guides into a single authoritative reference for infrastructure teams implementing GitOps workflows in 2026.
