How To Manage Scalr RBAC At Scale Using The Scalr Provider

This post is the implementation companion to the pillar guide on role-based access control for self-service infrastructure. That guide covers the concepts: platform RBAC versus cloud IAM, the account, environment, and workspace scopes, and how granular roles let a platform team onboard developers of any skill level. Here we put those concepts into code. Scalr allows custom roles and access policies at every scope in the product, which makes the RBAC model flexible. That flexibility only helps if you manage RBAC in a way that scales, which means automating it with the Scalr provider.

Automating RBAC is one step in a larger effort to "vend" Scalr environments, which is a best practice when onboarding new applications and teams. Typically you build a Scalr module that creates teams and associates a role with each team. The module then creates an environment and links provider credentials, policies, teams, variables, and modules to it. A team can then log into a pre-configured environment and focus on their Terraform deployments. (If you already have a vending machine for your cloud accounts and subscriptions, you can extend it to Scalr as well.) The rest of this post walks through the technical detail of automating Scalr RBAC.

You'll manage three objects:

• Roles - The permissions a team or user has.
• Users/Teams - The users or teams who have access to Scalr.
• Access Policies - The object that links a team to a role and defines the scope at which the linking happens.

In this tutorial, we'll use the Scalr provider to assign a team with a custom role to an environment. We'll walk through each piece of code first so you can see how it's used. Near the bottom of the post you'll find the end result: a single main.tf with all of the code in it.

First, set up the provider in a providers.tf. Get the provider information from https://registry.scalr.io/:

terraform {
  required_providers {
      scalr = {
          source = "registry.scalr.io/scalr/scalr"
          version= "1.0.0-rc32"
      }
  }
}

Now start on main.tf. First, add a local to define the account:

##Define your account and environment ID##
locals {
  account_id  = "<your-account-id>"
}

Next add some data sources to pull IDs:

data "scalr_environment" "example" {
  name = "Research-Development"
  account_id = local.account_id
}

data "scalr_role" "example" {
  name = "account-min-access"
}

Next, create the predefined roles that teams will be assigned. Most of the time, roles are created upfront and modified as needed; they don't change often. Here we'll create one role for application teams who only need to create Terraform runs.

resource "scalr_role" "planner" {
  name         = "Plan Creation"
  account_id = local.account_id
  description = "Ability to create Terraform runs, but not approve"

  permissions = [
    "accounts:read",
    "environments:read",
    "runs:cancel",
    "runs:create",
    "workspaces:read",
    "workspaces:set-schedule",
    "workspaces:update"
  ]
}

Next, add a team. Normally you'd use Terraform variables so the code can be reused, but here we'll hardcode values and use locals for the account/environment ID. The full code with the locals defined is further down:

resource "scalr_iam_team" "example" {
  name        = "myfirstscalrteam"
  description = "Scalr Example Team"
  account_id  = local.account_id
}

Lastly, we need to create an access policy to attach the role to a team and link the team to a scope in Scalr. All teams must have at least the 'account-min-access' role at the account scope to have access to Scalr, and then they can be added to the environment in which they will create runs:

##Link to the account first with minimal access##
resource "scalr_access_policy" "team_min_access_to_acc_scope" {
  subject {
    type = "team"
    id = scalr_iam_team.example.id
  }
  scope {
    type = "account"
    id = local.account_id
  }

  role_ids = [
    data.scalr_role.example.id
  ]
}

##Link to an environment with role created earlier##
resource "scalr_access_policy" "team_access_to_env_scope" {
   subject {
     type = "team"
     id = scalr_iam_team.example.id
   }
   scope {
     type = "environment"
     id = data.scalr_environment.example.id
   }

   role_ids = [
     scalr_role.planner.id
   ]
}

All together, this looks like:

##Define your account ID##
locals {
  account_id  = "acc-sscctbisjkl35b8"
}

data "scalr_environment" "example" {
  name = "Research-Development"
  account_id = local.account_id
}

data "scalr_role" "example" {
  name = "account-min-access"
}

resource "scalr_role" "planner" {
  name         = "Plan Creation"
  account_id = local.account_id
  description = "Ability to create Terraform runs, but not approve"

  permissions = [
    "accounts:read",
    "environments:read",
    "runs:cancel",
    "runs:create",
    "workspaces:read",
    "workspaces:set-schedule",
    "workspaces:update"
  ]
}

resource "scalr_iam_team" "example" {
  name        = "myfirstscalrteam"
  description = "Scalr Example Team"
  ##Add your own account ID##
  account_id  = local.account_id
}

##Link to the account first with minimal access##
resource "scalr_access_policy" "team_min_access_to_acc_scope" {
  subject {
    type = "team"
    id = scalr_iam_team.example.id
  }
  scope {
    type = "account"
    id = local.account_id
  }

  role_ids = [
    data.scalr_role.example.id
  ]
}

##Link to an environment with role created earlier##
resource "scalr_access_policy" "team_access_to_env_scope" {
  subject {
    type = "team"
    id = scalr_iam_team.example.id
  }
  scope {
    type = "environment"
    id = data.scalr_environment.example.id
  }

  role_ids = [
    scalr_role.planner.id
  ]
}

To execute this, you have a couple of options:

• Add the code to a VCS repository and link to a Scalr workspace that is VCS driven.
• Use the Terraform CLI and add Scalr as the remote backend.
• Module driven workspaces to help standardize onboarding.

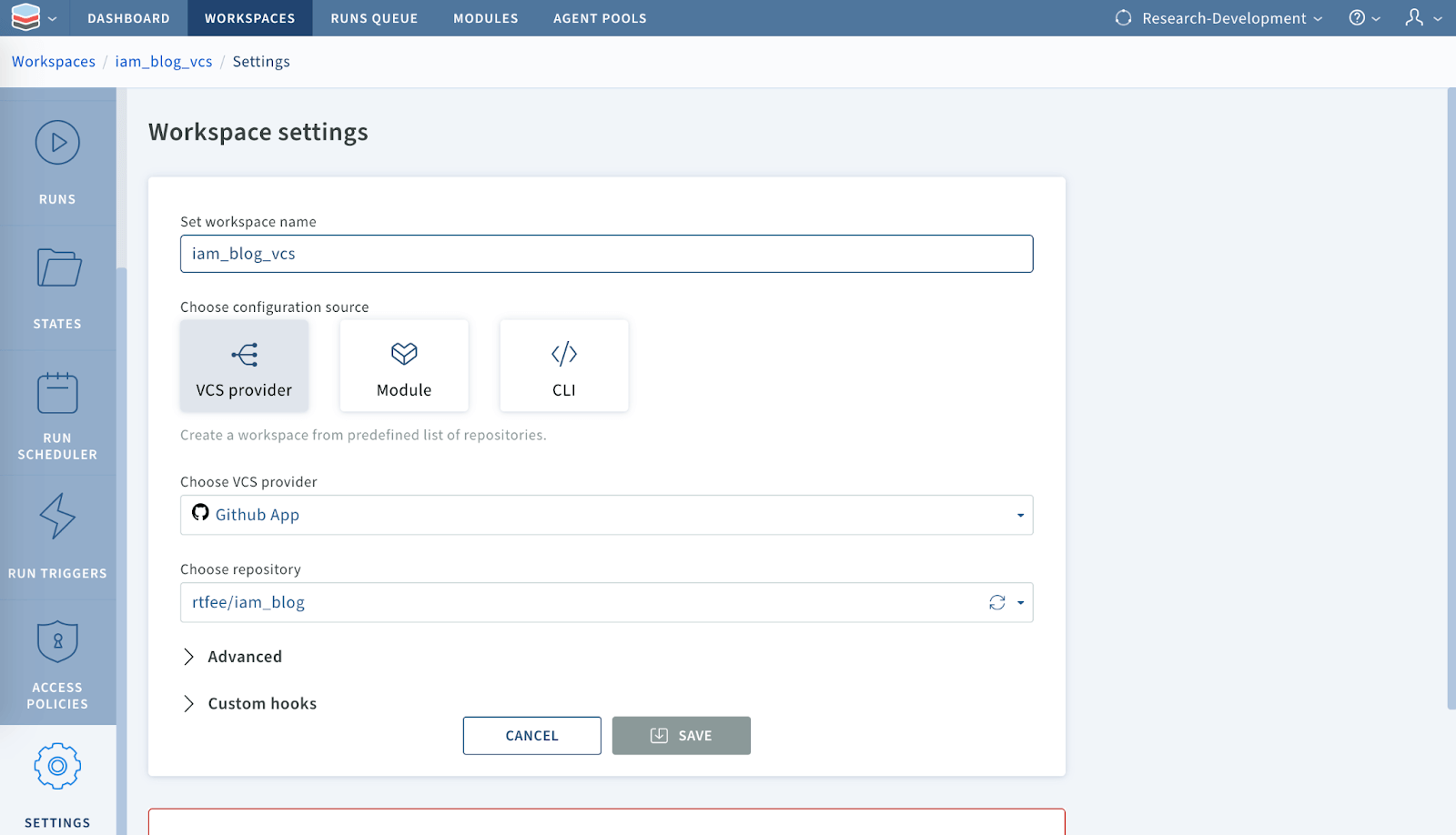

I'm choosing to use a VCS backed workspace:

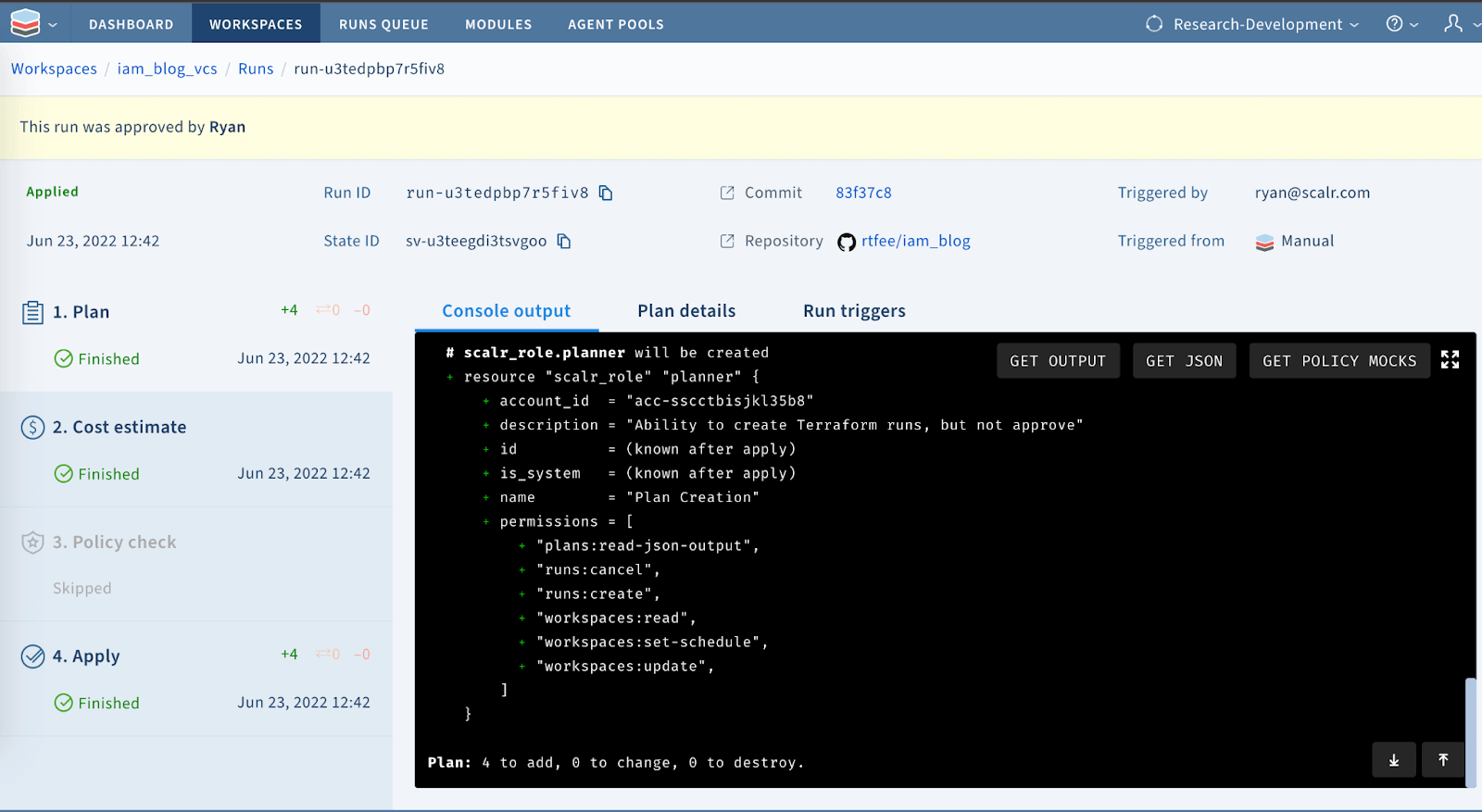

After the run, the four resources exist:

You can verify this by looking at each object in the account scope:

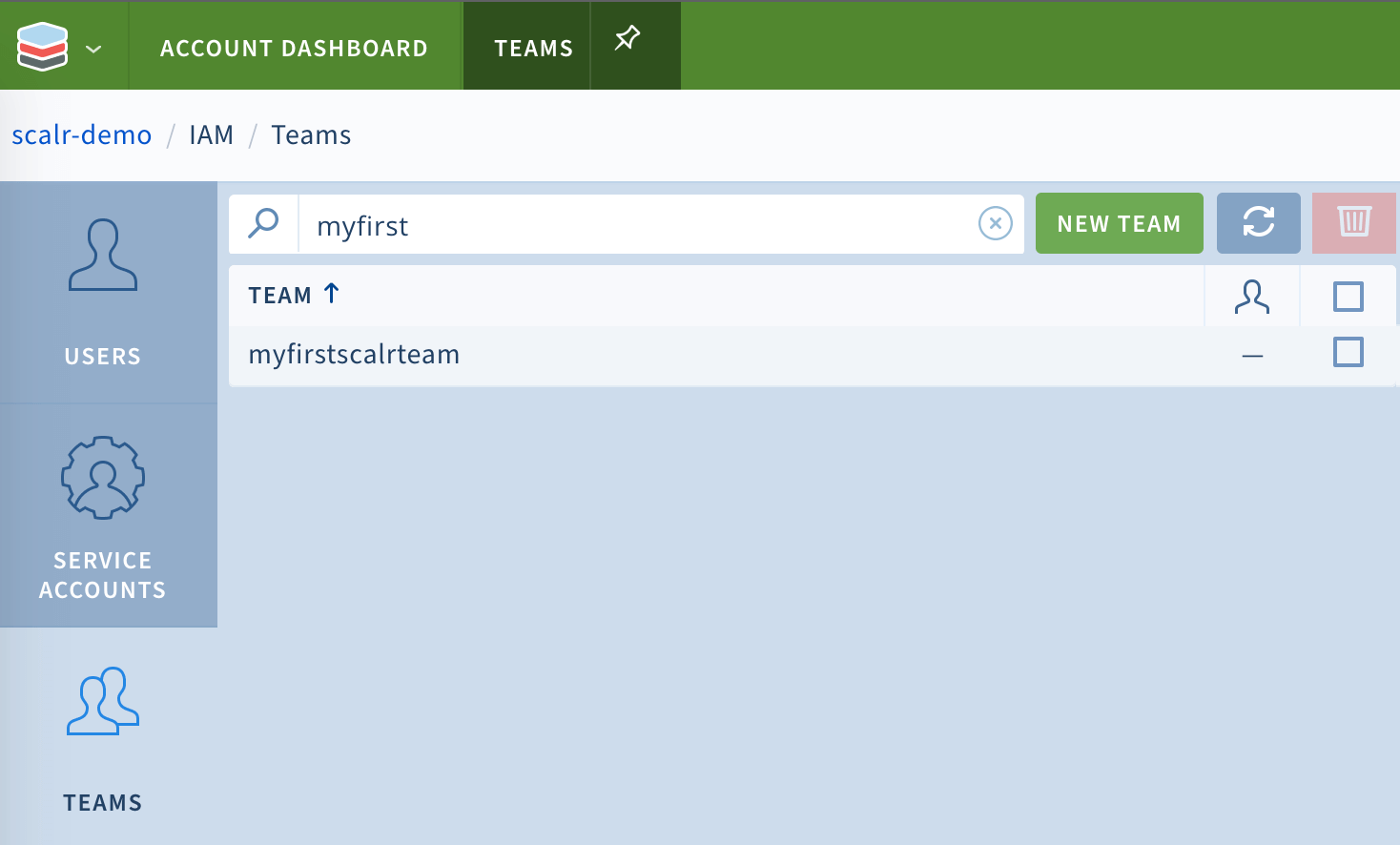

Team creation:

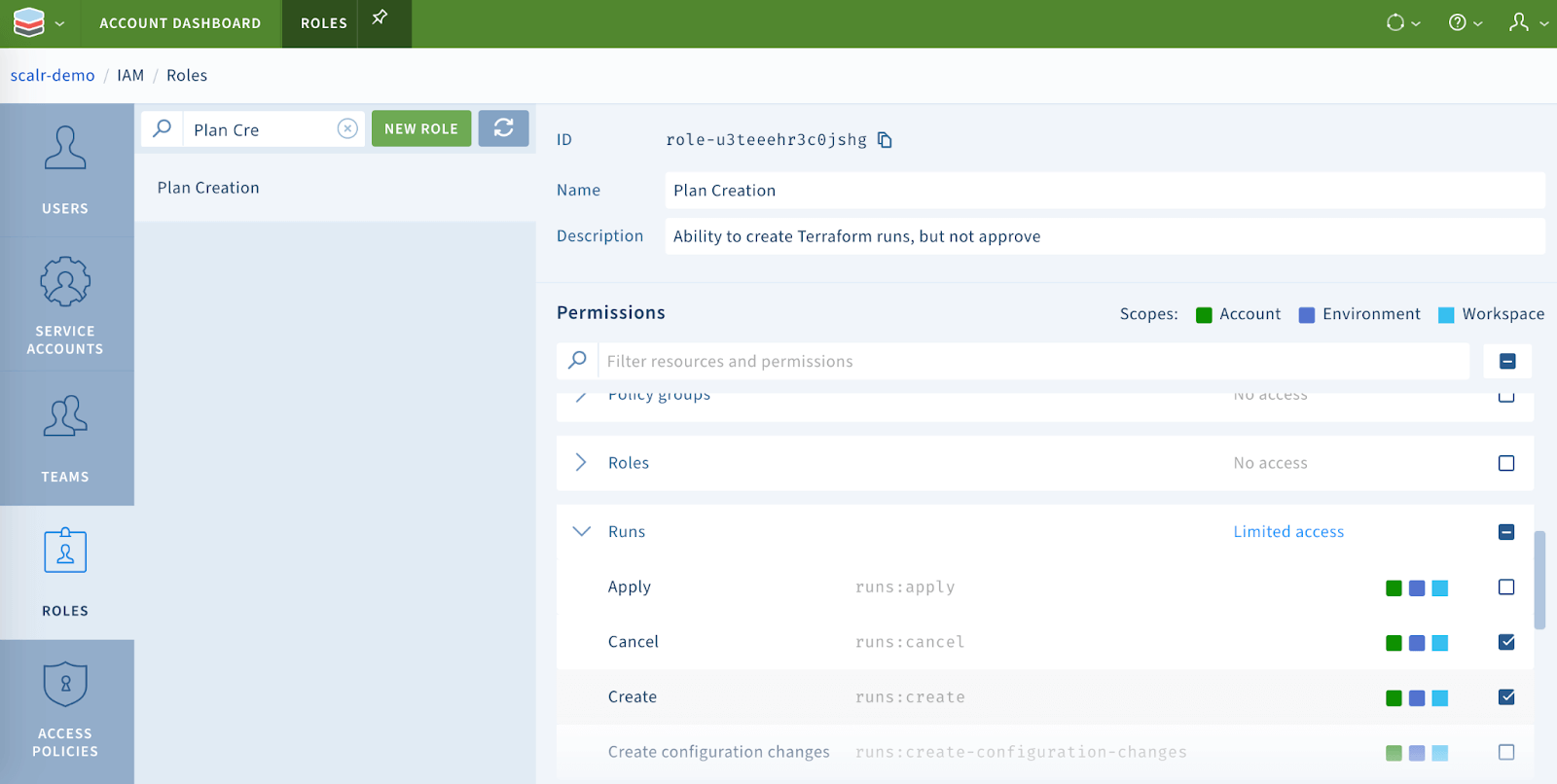

Role creation:

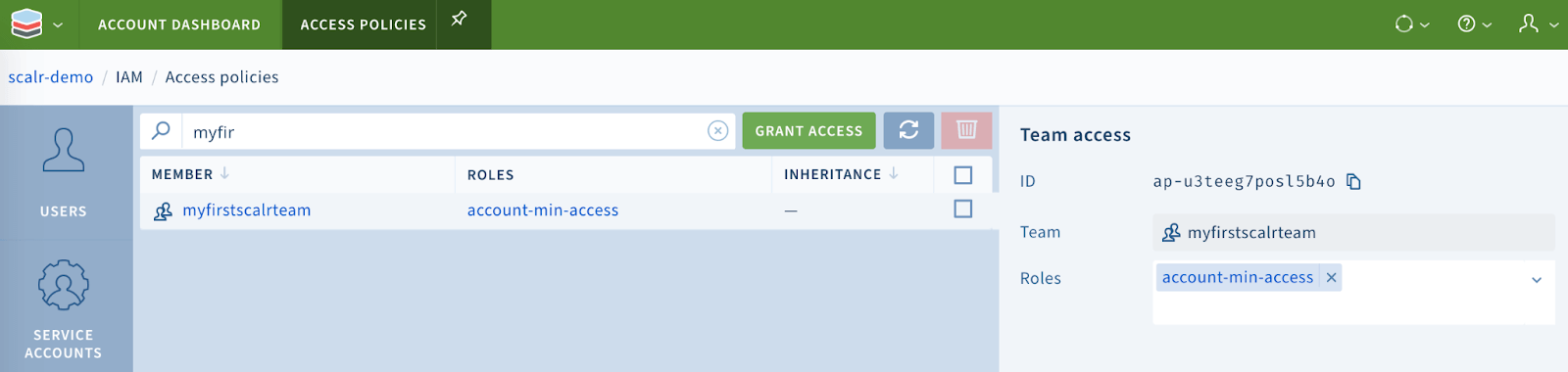

Account scope access policy:

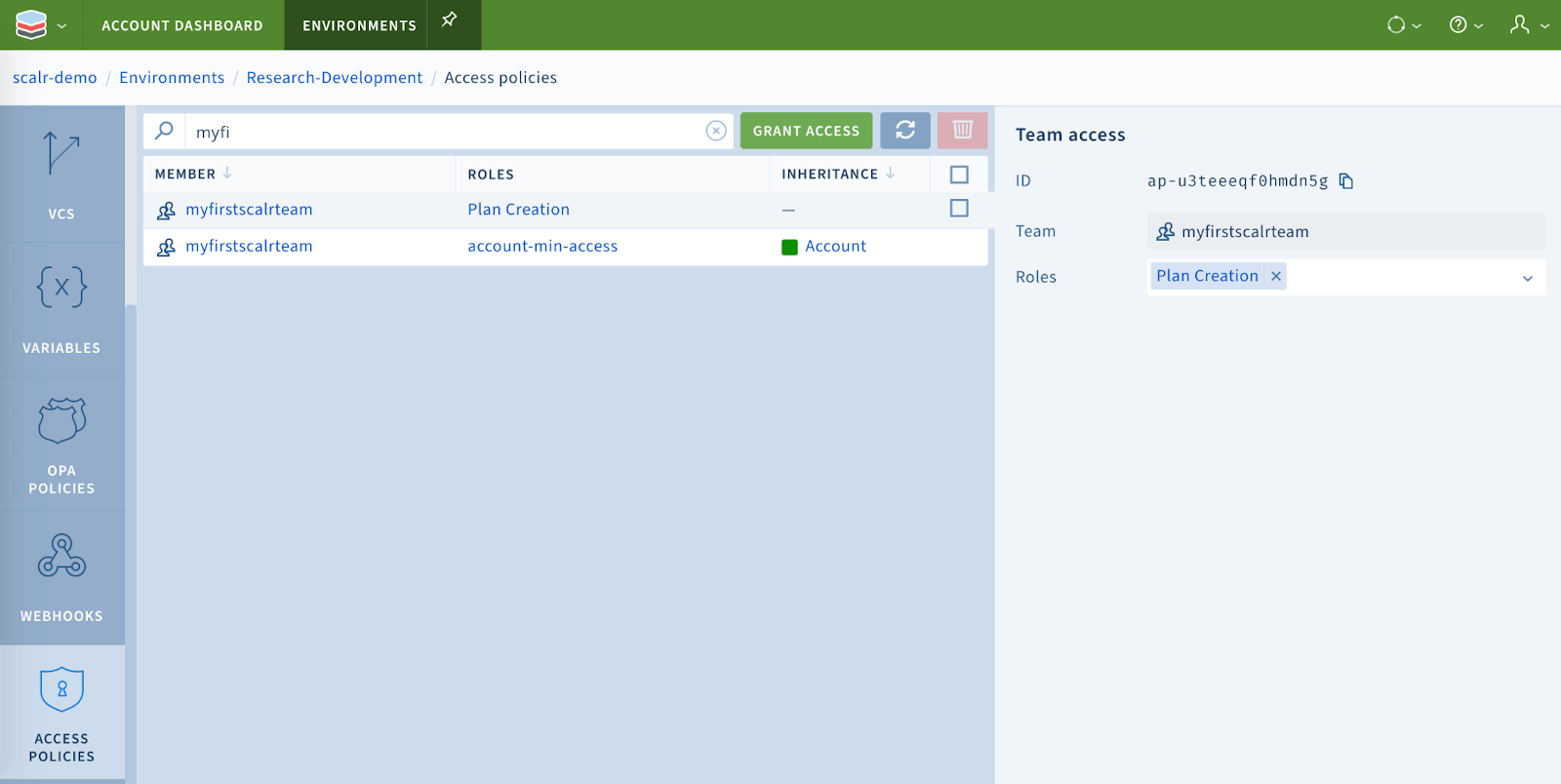

Environment scope access policy:

What's next

With the basics of managing Scalr IAM through the Scalr provider in place, here are a few ways to extend it:

• Separate out the role resource into its own module. You probably won't create a new role every time a team onboards; reuse common roles instead. We kept it in the same main.tf code for example purposes in this blog.
• Use this code as a starting point for a module and use variable files to make the code reusable.
• Incorporate this into a vending machine. As teams onboard into Scalr they usually get their own environment. Add code that creates the environments and links objects (teams, policies, variables, and more) to them, so onboarding is fully automated.
